PRODUCTS




OVERVIEW

OrangeWire’s approach to Application Lifecycle Management is built around our suite of hardware and software tools for digital system virtualization.

Our modular xIL framework allows simulation and emulation of digital systems for modeling at the conceptual stage of development.  We lower the cost of validation and verification by moving integration and acceptance forward in the hardware and software development lifecycles:

  • Lower cost per user and per line of code tested.
  • More software verification and greater product throughput
  • Fast, early software verification and shorter product delivery cycles
  • Increased product reliability and lower product risk
  •  Lower cost to deploy code across many product variants



HARDWARE

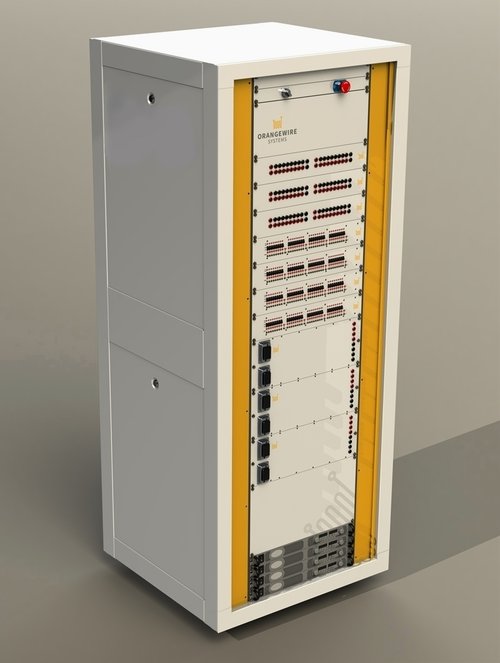

Our xIL solutions are based on National Instruments’ modular Switch Load Signal Conditioning (SLSC) architecture. SLSC provides complete flexibility at the component, drawer and rack levels of integration, allowing incremental scalability in applications across the entire product development lifecycle.

OrangeWire’s hardware products cover a full spectrum of MIL/HIL requirements for sensor and actuator emulation, failure insertion, and isolated power distribution and management.

PRODUCT LIST

OW-130 - 12-Slot Signal Adapter Failplane

OW-202-8 - 8-Channel 50W/10A Load Card

OW-204-4 16-Channel Programmable Active Load

OW-205-32 - 32-Channel Load Board

OW-402-32 - 32-Channel 5Q Fault Insertion

OW-403-16 - 16-Channel 17A Fault Insertion

OW-503-4 - 4-Channel Power Switch

OW-601 - DET Power Switching

OW-701-16 - 16-Channel Current Sense

OW-802-16 - 16-Channel Multi Range Analog Output

OW-901-32 - 32-Channel Digital IO Scaling

OW-902-8 - 8-Channel Wheel Speed Simulator

SOFTWARE

xSPEC software framework - Executable Specifications (ALM Middleware)-  allows SE based approach to xIL

OrangeWire xSPEC Software “Executable Specification”:

Implement Model Based Specifications and Model Based Requirements Traceability

 Set and Manage Test and Production Software Configurations

  • Configure Models for MIL/HIL/SIL
  • Build Model Configurations for National Instruments’ VeriStand and TestStand
  • Manage Parameter and Calibration Sets
  • Parameterize Software Configurations
  • Define and Manage Interface Controls and Definitions
  • Configuration Management and Version Control
  • Define and Manage Uniform Software Architectures and Model Styles
  • Seamlessly transition between Test and Production
  •  Configuration Management and Version Control
  • Software Switching Between Real, Simulated, Emulated Hardware
  • Virtualize Integrated Software Subsystems Through Hardware Abstraction
